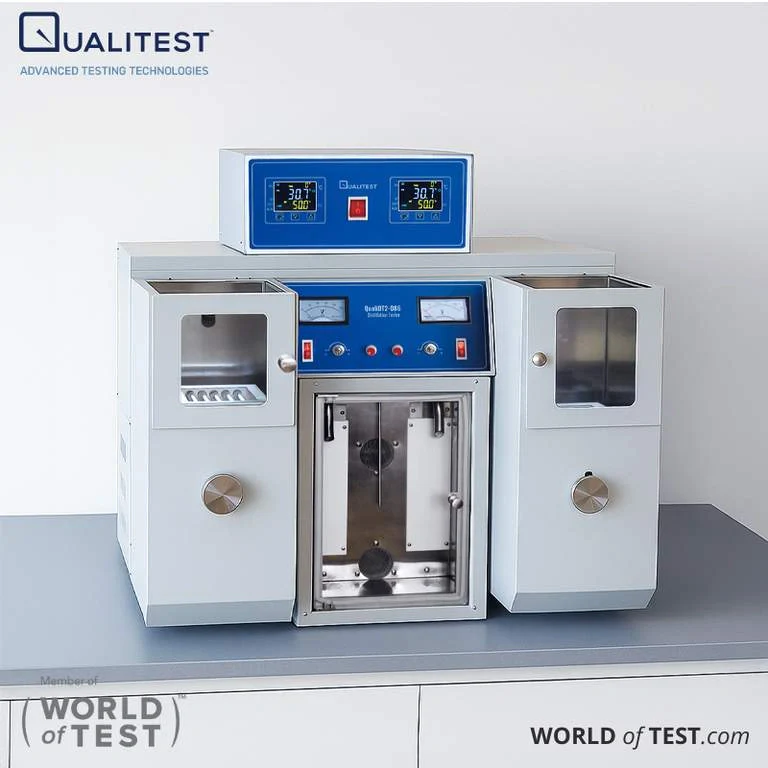

Dual-Unit Distillation Tester
The QualiDT2™ D86 Dual-Unit Distillation Tester is engineered for accurate distillation analysis of petroleum products in line with ASTM D86 standards. This advanced system enables simultaneous testing of two samples, enhancing laboratory productivity while maintaining high precision and repeatability.
Designed for evaluating the boiling range properties of fuels such as gasoline, diesel, jet fuel, naphtha, petroleum solvents, and kerosene, the QualiDT2™ D86 delivers consistent and dependable performance. It features precise temperature regulation and an integrated cooling system to ensure stable and reliable test conditions for compliant fuel analysis.
The QualiDT2™ D86 Dual-Unit Distillation Tester is an ideal solution for petroleum laboratories that require high-throughput, ASTM D86-compliant distillation analysis of liquid fuels and solvents. Designed to streamline testing workflows, it enables simultaneous processing of two samples while maintaining excellent accuracy, repeatability, and consistency.
Built for advanced fuel characterization, the system is suitable for determining the boiling range of products such as gasoline, diesel, jet fuel, naphtha, petroleum solvents, and kerosene.
Contact Qualitest to request a quotation or to get more information on how the QualiDT2™ D86 can enhance laboratory efficiency, testing capacity, and regulatory compliance.
Dual-Unit Distillation Tester – Key Features
Dual Testing Capability
The system includes two independent testing units that allow parallel distillation analysis, increasing sample throughput and reducing overall testing time in the laboratory.
Closed System Design
An enclosed distillation and receiving setup with internal circulation removes the need for a water bath. This design helps prevent leakage, condensation issues, and icing while supporting safer and more efficient operation.
Precision Temperature Control
Advanced PID-based control with a digital liquid crystal temperature display ensures stable and accurate temperature regulation throughout the full distillation range.
Integrated Refrigeration System
A built-in refrigeration unit accelerates sample cooling after each test cycle, helping minimize downtime and improve workflow efficiency.
Automatic Control and Monitoring
Automated regulation of condenser and receiver temperatures delivers consistent and repeatable results with minimal manual intervention.
Dual-Unit Distillation Tester Technical Specifications
| Parameter | Specification |
|---|---|
| Total Power Consumption | 3500W |
| Distillation Heating Power | 0–1200W (per unit, adjustable) |
| Condenser Temperature Control Range | 0°C to 60°C |
| Temperature Accuracy | ±1°C |
| Dimensions | 660 × 505 × 660 mm |
| Weight | 30 kg |
| Operating Conditions | Ambient temperature: 5–35°C, Relative humidity: ≤85% |
Description
Dual-Unit Distillation Tester
The QualiDT2™ D86 Dual-Unit Distillation Tester is engineered for accurate distillation analysis of petroleum products in line with ASTM D86 standards. This advanced system enables simultaneous testing of two samples, enhancing laboratory productivity while maintaining high precision and repeatability.
Designed for evaluating the boiling range properties of fuels such as gasoline, diesel, jet fuel, naphtha, petroleum solvents, and kerosene, the QualiDT2™ D86 delivers consistent and dependable performance. It features precise temperature regulation and an integrated cooling system to ensure stable and reliable test conditions for compliant fuel analysis.
The QualiDT2™ D86 Dual-Unit Distillation Tester is an ideal solution for petroleum laboratories that require high-throughput, ASTM D86-compliant distillation analysis of liquid fuels and solvents. Designed to streamline testing workflows, it enables simultaneous processing of two samples while maintaining excellent accuracy, repeatability, and consistency.
Built for advanced fuel characterization, the system is suitable for determining the boiling range of products such as gasoline, diesel, jet fuel, naphtha, petroleum solvents, and kerosene.
Contact Qualitest to request a quotation or to get more information on how the QualiDT2™ D86 can enhance laboratory efficiency, testing capacity, and regulatory compliance.
Dual-Unit Distillation Tester – Key Features
Dual Testing Capability
The system includes two independent testing units that allow parallel distillation analysis, increasing sample throughput and reducing overall testing time in the laboratory.
Closed System Design
An enclosed distillation and receiving setup with internal circulation removes the need for a water bath. This design helps prevent leakage, condensation issues, and icing while supporting safer and more efficient operation.
Precision Temperature Control
Advanced PID-based control with a digital liquid crystal temperature display ensures stable and accurate temperature regulation throughout the full distillation range.
Integrated Refrigeration System
A built-in refrigeration unit accelerates sample cooling after each test cycle, helping minimize downtime and improve workflow efficiency.
Automatic Control and Monitoring
Automated regulation of condenser and receiver temperatures delivers consistent and repeatable results with minimal manual intervention.
Dual-Unit Distillation Tester Technical Specifications
| Parameter | Specification |
|---|---|
| Total Power Consumption | 3500W |
| Distillation Heating Power | 0–1200W (per unit, adjustable) |
| Condenser Temperature Control Range | 0°C to 60°C |
| Temperature Accuracy | ±1°C |
| Dimensions | 660 × 505 × 660 mm |
| Weight | 30 kg |
| Operating Conditions | Ambient temperature: 5–35°C, Relative humidity: ≤85% |
