Density Tester for Petroleum Products and Crude Oil

Density Tester for Petroleum Products and Crude Oil (ASTM D1298)

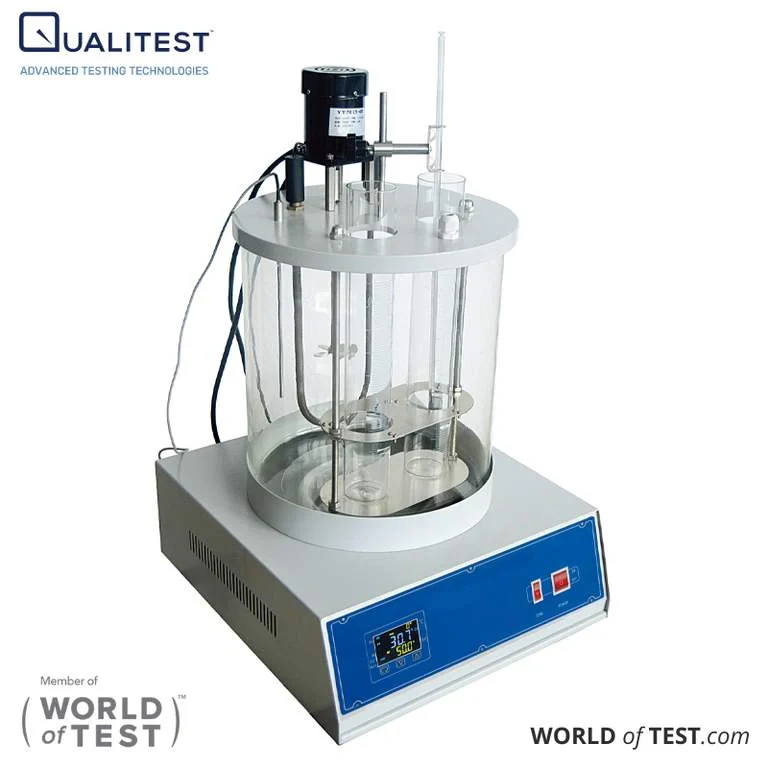

The QualiDT™-D1298 by Qualitest is a high-precision hydrometer-based density tester engineered to measure density, relative density (specific gravity), and API gravity of liquid petroleum products and crude oil in strict compliance with ASTM D1298.

Designed around the traditional hydrometer method, this system delivers dependable and consistent results with a clear glass water bath that includes integrated bottom illumination for improved reading clarity. Advanced PID auto-tuning ensures stable and accurate temperature regulation throughout testing, supporting repeatable measurement conditions.

This instrument is well suited for laboratories, refineries, fuel certification facilities, and petrochemical quality control and assurance environments where accurate petroleum density analysis is essential.

Key Applications

• Measurement of API gravity for crude oil

• Density analysis of gasoline, diesel, and lubricants

• Specific gravity evaluation for petroleum blending and certification processes

• Compliance testing in accordance with ASTM D1298 for laboratories and oil terminals

Hydrometer-Based Density Testing for Oil & Fuel Quality Control

Designed for precision, stability, and straightforward operation, the QualiDT™-D1298 delivers consistent density and API gravity results for petroleum testing laboratories. It supports reliable quality assessment of fuel and oil products, helping ensure compliance with industry and regulatory requirements.

Key Features & Benefits – Density Tester for Petroleum Products and Crude Oil

• ASTM D1298 Compliance: Fully aligned with the hydrometer method for accurate density measurement of liquid petroleum products.

• Improved Reading Clarity: Glass water bath with integrated bottom illumination ensures clear and easy hydrometer observation.

• Stable Temperature Regulation: PID auto-tuning system maintains precise bath temperature control with ±0.25°C accuracy, from ambient up to 100°C.

• Dual Sample Testing: Two fixed testing positions enable simultaneous measurements, improving testing efficiency and workflow productivity.

• Comprehensive Hydrometer Set: Supplied with 10 calibrated densitometers covering a wide range of density values for versatile petroleum analysis.

Density Tester for Petroleum Products Specifications:

Parameter	Specification
Temperature Control Range	Room Temperature to 100°C
Temperature Accuracy	±0.25°C
Heating Power	800W
Number of Measuring Positions	2 fixed slots
Included Densitometers	10 pieces
Dimensions (L × W × H)	400 × 400 × 660 mm
Weight	30 kg
