Tie Scaffold Tester Kit - QualiScaffold M2000 is designed to help scaffolders test all commonly used scaffold anchors and fixings, following Guidance Notes TG4:19 and TG20:21.

Tie Scaffold Tester Kit - QualiScaffold M2000

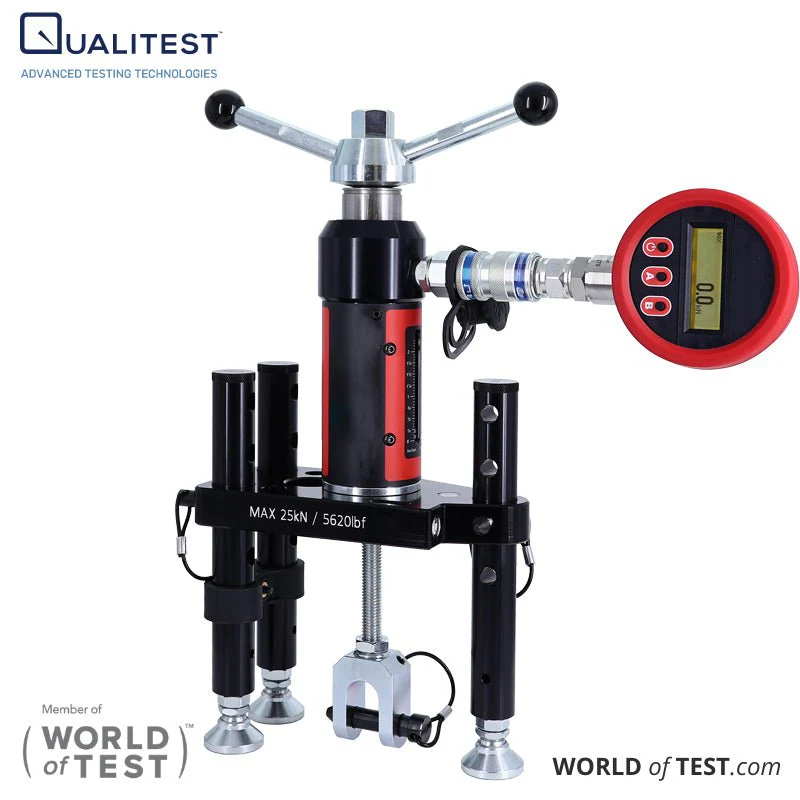

Tie Scaffold Tester Kit - QualiScaffold M2000 is designed to help scaffolders test all commonly used scaffold anchors and fixings, following Guidance Notes TG4:19 and TG20:21. Built to meet high manufacturing standards, the kit includes adaptors to test the most frequently used anchors for scaffold ties, with a maximum tensile load of 25kN (5620 lbf). The three-legged load-spreading bridge helps keep reaction loads away from the fixing, ensuring more reliable results. Trusted by leading scaffolding companies worldwide, the M2000 Scaffold Tie Tester Kit is an essential tool for scaffolders aiming to adhere to the latest health and safety standards.

Tie Scaffold Tester Kit - QualiScaffold M2000 Features

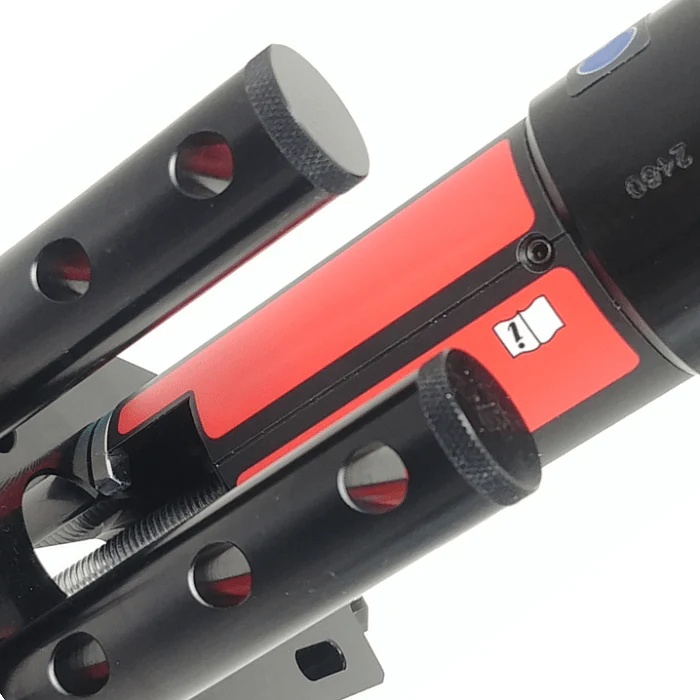

The Tie Scaffold Tester Kit - QualiScaffold M2000 includes a 0-25kN dual-scale rechargeable digital gauge, compatible with the latest free-to-use App. The gauge is detachable for calibration, which helps reduce carrier return costs. The kit features a 2020 load-spreading bridge with height-adjustable legs and a pin arrangement in four positions, providing 15mm of fine adjustment via swivel feet. It also includes a turning handle with a 22mm (7/8") integrated nut, perfect for use in confined spaces, and offers up to 50mm of stroke. The tester comes pre-assembled, with accessories that can be easily attached. A 12-month gauge calibration certificate is included.

The kit is supplied in a durable protective carry case, along with comprehensive operating instructions. It includes the following adaptors:

M12 Ringbolt Adaptor Clevis
Bolt Tester Adaptor with M12 Locking Adaptor
M16 Threaded Stud Adaptor
M16 Hexagon Set Screw
M16 Threaded Stud

Tie Scaffold Tester Kit - QualiScaffold M2000 Technical Specifications

Pull-Out Load Range	0–25kN (5,620 lbf)
Stroke	Up to 50mm (1.97")
Weight	Tester only: 2.2kg (4.85 lbs)
Load Spreading Bridge (LSB) Dimensions (between feet edge)	116mm (4.57")
Case Dimensions	571 x 382 x 160mm (22.48 x 15.04 x 6.30")
Case Weight	10kg
Oil Type	ISO VG 32 Mineral-based oil
Oil Replenishment	Supplied oil bottle with piston key
Warranty	12 months
Part Numbers	Part #: 200-014 (Analog) Part #: 200-015 (Digital)
