Overview

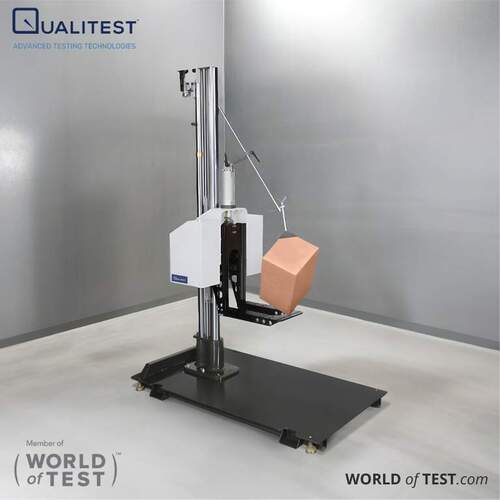

The QualiPDT™ 60 is a piece of equipment put together to copy the drops and impacts that packages go through during shipping.

As a dependable package drop test machine, it lets you run free-fall checks on all sorts of parts of your packaging, including the flat faces, corners, and edges. This is a great fit for anyone making electronics or appliances who needs to be sure their packaging can really protect what's inside.

Features & Benefits

Steady and Quiet Operation: Comes with a very accurate ball screw that keeps noise down and helps the machine last a long time, while a special brake gives you exact height control.
Securely Holds Any Box: A special U-joint holder with an arm setup that can be changed securely grips boxes of all different shapes and sizes, letting you test them on their most vulnerable spots.
Solid Cast Iron Body: The main frame of this package drop tester is made from a single casting, which makes it very stiff and steady, soaking up shocks for more reliable information.
Fast and Clean Release: The testing system uses compressed air to make the holding platform drop away very quickly and smoothly, making sure you get a true free-fall without any tilting.
Strong Landing Pad: The base plate is built with a welded steel structure for extra toughness and can be made to a custom size to fit your specific items.

Package Drop Tester Technical Specifications

Specification	Type A	Type B	Type C
Max. Load of Dropping Platform	60 KG
Moving Speed	2000 mm/min
Max. Testing Height	130 cm	180 cm	200 cm
Min. Testing Height	30 cm
Dropping Platform Area (X‧Y)	27 x 47 cm
Max. Object Size	80 x 80 x height unlimited
Operation Method	Wiring Box Operation
Buffer Device	Hydraulic Buffer Device
Air Pressure	0.5 MPA
Voltage	Single Phase 220V, 8A (110V available upon request)
Height (H)	205 cm	266 cm	288 cm
Weight (excluding base plate)	218 cm	366 cm	375 cm

Base Plate Dimensions (Optional)
85x150 cm	120x150 cm	120x180 cm	150x180 cm	180x180 cm	240x150 cm
