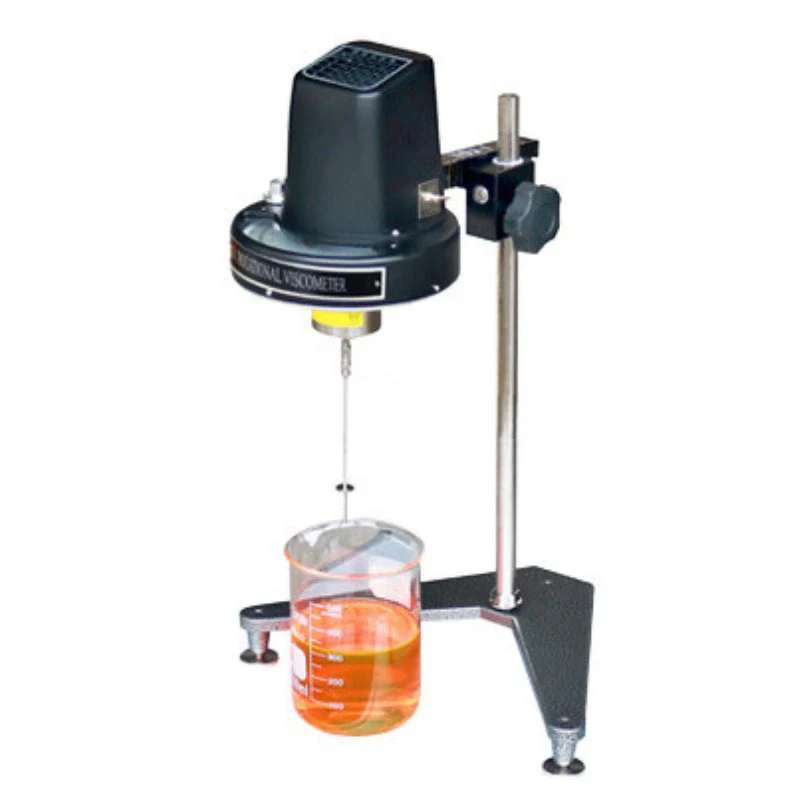

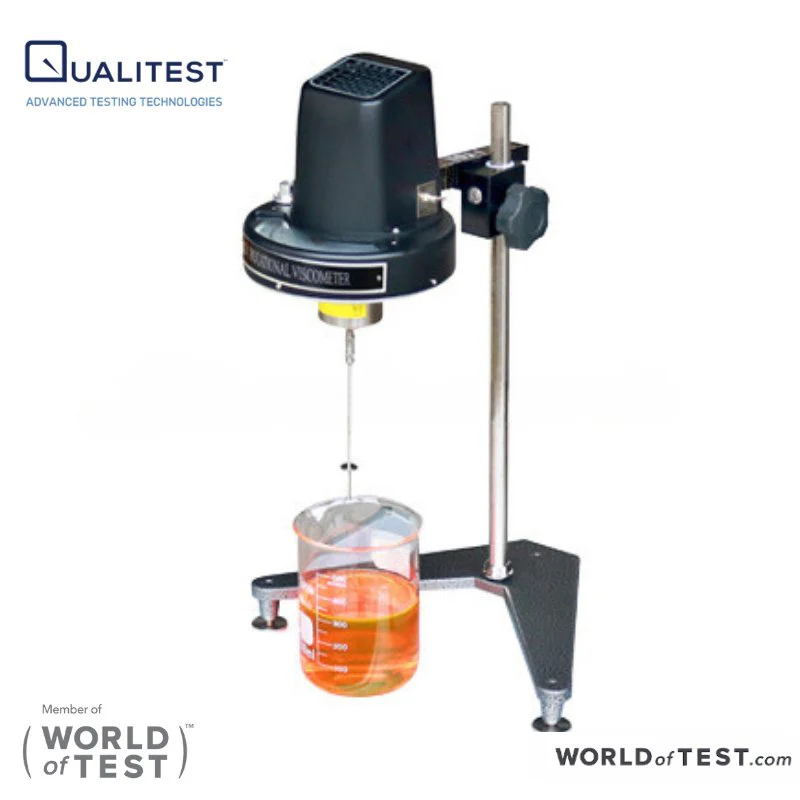

Dial Reading Viscometer ViscoQT DR-100

The Dial Reading Viscometer ViscoQT DR-100, equipped with four rotors numbered 1 through 4, is designed for measuring viscosity, friction, and absolute viscosity in liquids. Users can choose the rotor based on the liquid's viscosity and the desired rotation speed.

Widely utilized across industries like petroleum chemistry, medicine, food production, light industry, textiles, and scientific research, this device accurately determines the viscosity of various liquids such as oil, paint, plastic, food, medicine, and adhesives.

Accessories

THD Series - Low-Temperature Thermostatic Bath ViscoQT-SO 1600 - Standard Oil (500ml)

ViscoQT-SO 1601 - Low Viscosity Adapter (1-10 mPa.s)

ViscoQT-SO 1602 - Small Sample Adapter (Specially designed for customers with small samples; requires only a quantity as small as 5-18ml. The sample cup is easily cleaned, installed, removed, and observed. Accurate data on shear rate and shear stress can be obtained for a minute analysis of the fluid characteristics of the sample. One-off sample cups are available.)

ViscoQT-SO 1605 - Thermoses (Designed to accurately measure the viscosity of heated oil, paraffin, asphalt emulsions, medicine, high polymer, and similar liquid materials at high temperatures. It allows control of a sample’s temperature in a range from room temperature to +300℃. It can program the intelligent thermostat and ensure its temperature fluctuation within 0.1℃. Sample dosage is as small as 10ml, and one-off sample cups are available. The standard type of SC4 spindle can be applied, which is easy to use.)

Dial Reading Viscometer ViscoQT DR-100 Technical Parameters

Measurement Range	10-100,000mPa.s (cP)
Rotors	Four rotors - No.1, No.2, No.3, No.4
Rotate Speed	6r/min, 12r/min, 30r/min, 60r/min
Measuring Error	±5% (Newtonian fluids)
Electrical Power	220V/50Hz
Weight	7.9 KG
Dimension	410mm × 350mm × 440mm (L × W × H)

Ordering Information:

ViscoQT DR-100 151/1 - Dial Reading Rotary Viscometer
ViscoQT DR-100 1601 - Low Viscosity Adapter (1～10 mPa.s)
